Indices and rollover policies

Introduction

ElasticSearch and OpenSearch both support rollover on indices. OpenCTI has been designed to be able to use aliases for indices and so support very well index lifeycle policies.

Thus, by default OpenCTI initialized indices with a suffix -00001 and use wildcard to query indices. When rollover policies are implemented, indices are splitted to keep a reasonable volume of data in shards.

Indices

ElasticSearch configuration

Indices

We advise to put a rollover policy on all indices used by OpenCTI, here is the list:

  • opencti_history
  • opencti_inferred_entities
  • opencti_inferred_relationships
  • opencti_internal_objects
  • opencti_internal_relationships
  • opencti_stix_core_relationships
  • opencti_stix_cyber_observable_relationships
  • opencti_stix_cyber_observables
  • opencti_stix_domain_objects
  • opencti_stix_meta_objects
  • opencti_stix_meta_relationships

For your information, the indices which can grow rapidly are:

  • Index opencti_stix_meta_relationships: it contains all the nested relationships between objects and labels / marking definitions / external references / authors, etc.
  • Index opencti_history: it contains the history log of all objects in the platform.
  • Index opencti_stix_cyber_observables: it contains all observables stored in the platform.
  • Index opencti_stix_core_relationships: it contains all main STIX relationships stored in the platform.

Licecycle policy

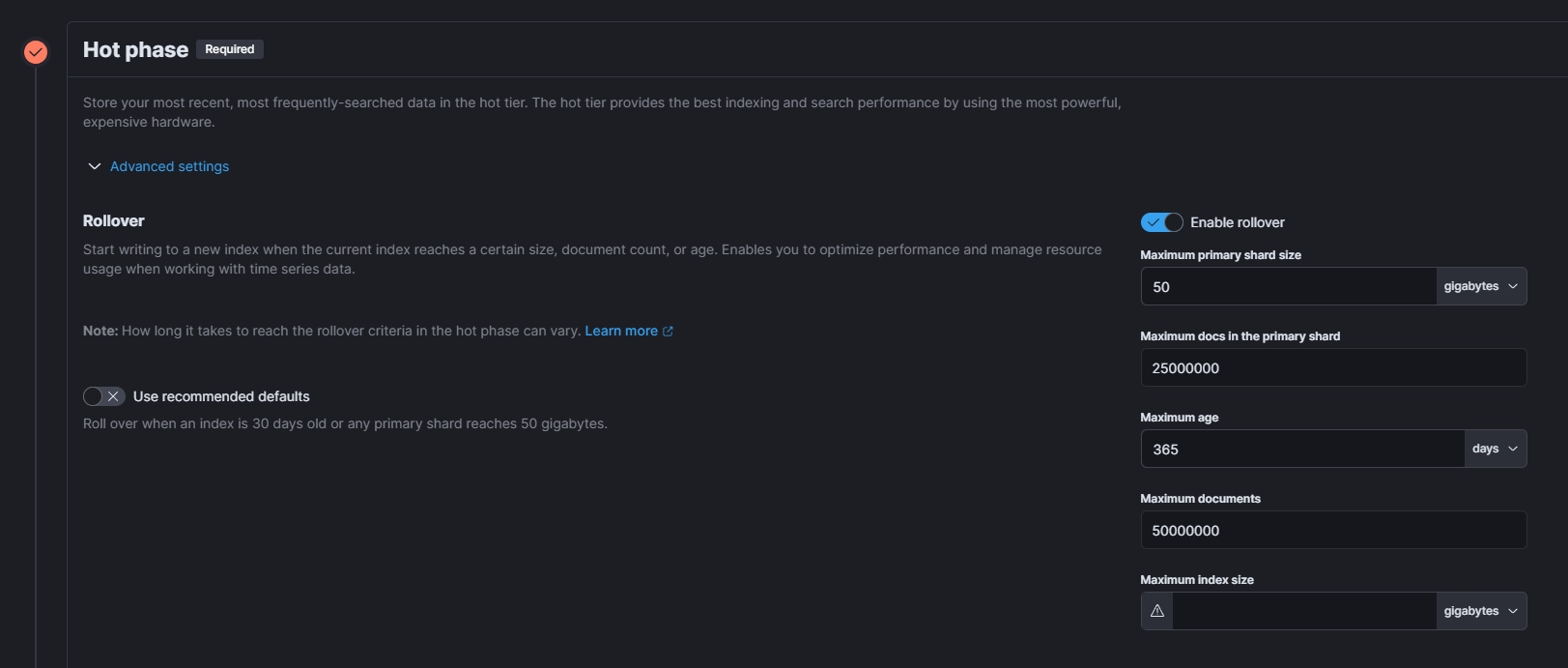

Here is n example of policy:

  • Maximum primary shard size: 50 GB
  • Maximum docs in the primary shard: 25,000,000
  • Maximum age: 365 days
  • Maximum documents: 50,000,000

Rollover

Then, apply this policy automatically to all opencti_* indices.

Rollover documentation

To have more details about automatic rollover and lifecycle policies, please read the official ElasticSearch documentation.
