Indices and rollover policies

Default rollover policies

Since OpenCTI 5.9.0, rollover policies are automatically created when the platform is initialized for the first time. If your platform has been initialized using an older version of OpenCTI or if you would like to understand (and customize) rollover policies please read the following documentation.

Introduction

ElasticSearch and OpenSearch both support rollover on indices. OpenCTI has been designed to be able to use aliases for indices and so support very well index lifecycle policies. Thus, by default OpenCTI initialized indices with a suffix -00001 and use wildcard to query indices. When rollover policies are implemented (default starting OCTI 5.9.X if you initialized your platform at this version), indices are splitted to keep a reasonable volume of data in shards.

OpenCTI Integration User Permissions in OpenSearch/ElasticSearch

• Index Permissions

  • Patterns: opencti* (Dependent on the parameter elasticsearch:index_prefix value)
  • Permissions: indices_all

• Cluster Permissions

  • cluster_composite_ops_ro
  • cluster_manage_index_templates
  • cluster:admin/ingest/pipeline/put
  • cluster:admin/opendistro/ism/policy/write
  • cluster:monitor/health
  • cluster:monitor/main
  • cluster:monitor/state
  • indices:admin/index_template/put
  • indices:data/read/scroll/clear
  • indices:data/read/scroll
  • indices:data/write/bulk

About indices:* in Cluster Permissions

It is crucial to include indices:* permissions in Cluster Permissions for the proper functioning of the OpenCTI integration. Removing these, even if already present in Index Permissions, may result in startup issues for the OpenCTI Platform.

ElasticSearch configuration

Indices

By default, a rollover policy is applied on all indices used by OpenCTI.

• opencti_deleted_objects
• opencti_files
• opencti_history
• opencti_inferred_entities
• opencti_inferred_relationships
• opencti_internal_objects
• opencti_internal_relationships
• opencti_stix_core_relationships
• opencti_stix_cyber_observable_relationships
• opencti_stix_cyber_observables
• opencti_stix_domain_objects
• opencti_stix_meta_objects
• opencti_stix_meta_relationships
• opencti_stix_sighting_relationships

For your information, the indices which can grow rapidly are:

• Index opencti_stix_meta_relationships: it contains all the nested relationships between objects and labels / marking definitions / external references / authors, etc.
• Index opencti_history: it contains the history log of all objects in the platform.
• Index opencti_stix_cyber_observables: it contains all observables stored in the platform.
• Index opencti_stix_core_relationships: it contains all main STIX relationships stored in the platform.

Default implemented lifecycle policy

Here is the recommended policy (initialized starting 5.9.X):

• Maximum primary shard size: 50 GB
• Maximum age: 365 days
• Maximum documents: 75,000,000

Applying rollover policies on existing indices

Procedure information

Please read the following only if your platform has been initialized before 5.9.0, otherwise lifecycle policies has been created (but you can still cutomize them).

Unfortunately, to be able to implement rollover policies on ElasticSearch / OpenSearch indices, it will be needed to re-index all the data in new indices using ElasticSearch capabilities.

Shutdown

First step is to shutdown your OpenCTI platform.

Change configuration

Then, in the OpenCTI configuration, change the ElasticSearch / OpenSearch default prefix to octi (default is opencti).

Create the rollover policy

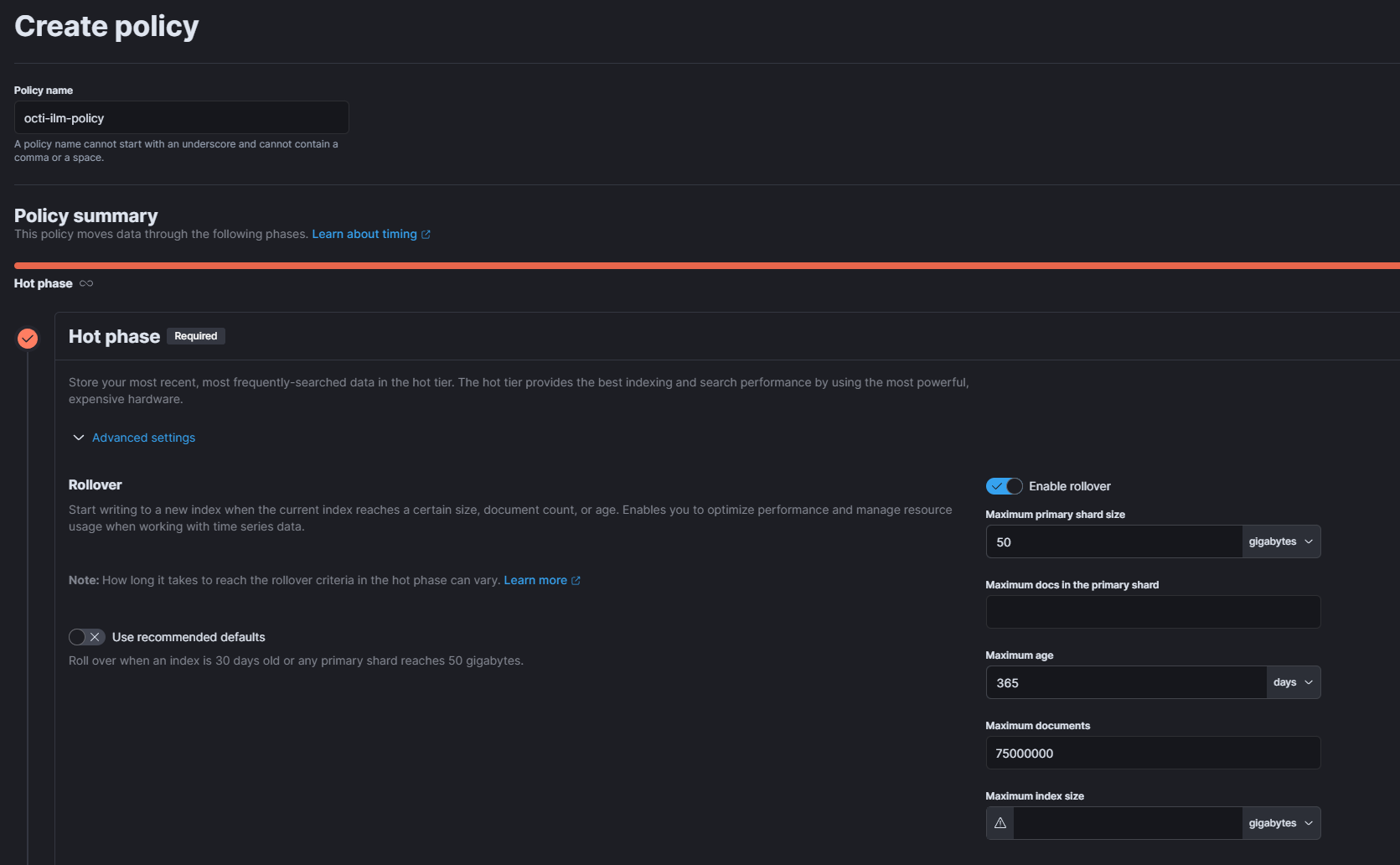

Create a rollover policy named octi-ilm-policy (in Kibana, Management > Index Lifecycle Policies):

• Maximum primary shard size: 50 GB
• Maximum age: 365 days
• Maximum documents: 75,000,000

Create index templates

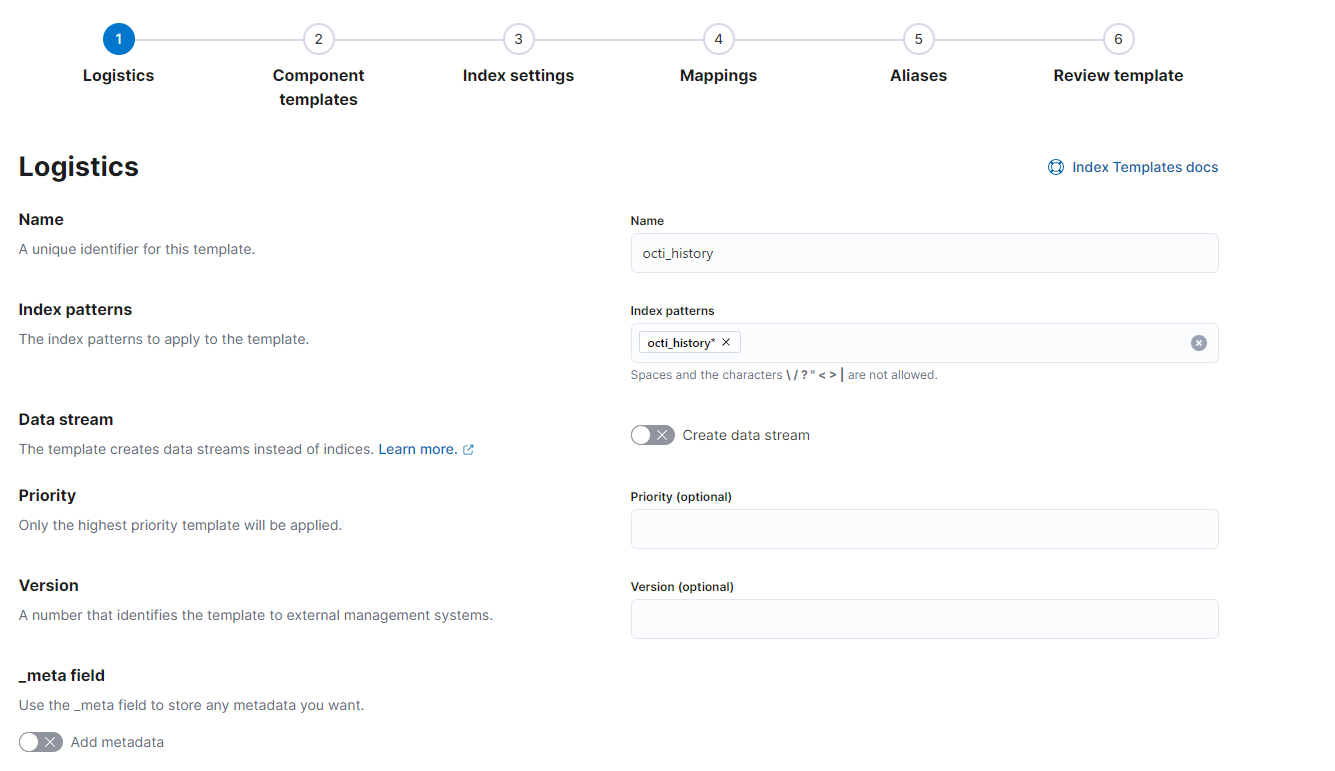

In Kibana, clone the opencti-index-template to have one index template by OpenCTI index with the appropriate rollover policy, index pattern and rollover alias (in Kibana, Management > Index Management > Index Templates).

Create the following index templates:

• octi_deleted_objects
• octi_files
• octi_history
• octi_inferred_entities
• octi_inferred_relationships
• octi_internal_objects
• octi_internal_relationships
• octi_stix_core_relationships
• octi_stix_cyber_observable_relationships
• octi_stix_cyber_observables
• octi_stix_domain_objects
• octi_stix_meta_objects
• octi_stix_meta_relationships
• octi_stix_sighting_relationships

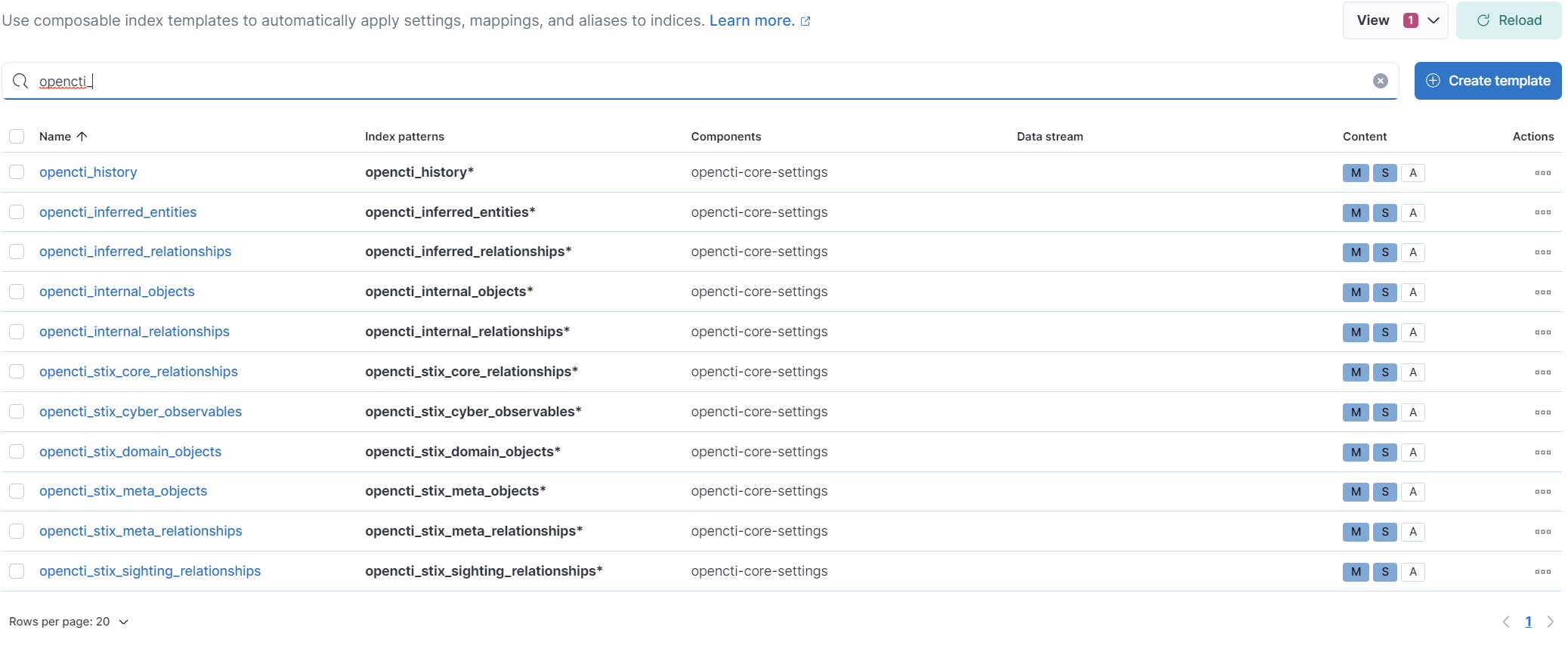

Here is the overview of all templates (you should have something with octi_ instead of opencti_).

Apply rollover policy on all index templates

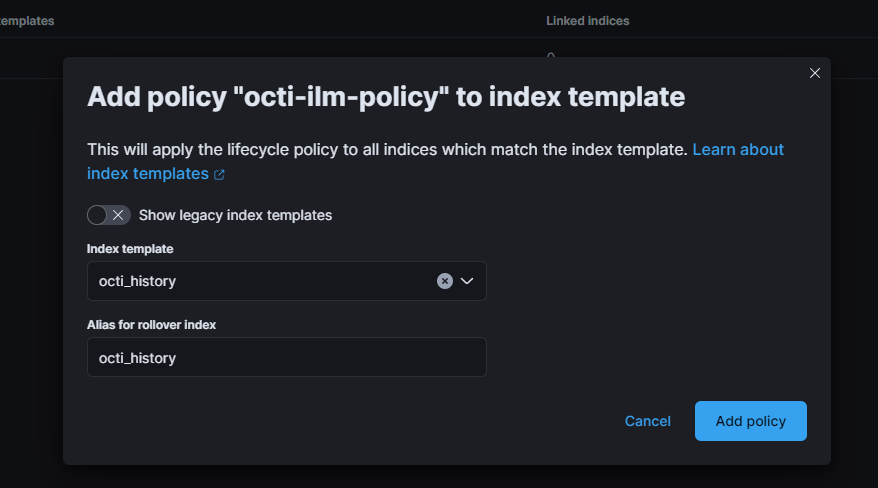

Then, going back in the index lifecycle policies screen, you can click on the "+" button of the octi-ilm-policy to Add the policy to index template, then add the policy to add previously created template with the proper "Alias for rollover index".

Bootstrap all new indices

Before we can re-index, we need to create the new indices with aliases.

PUT octi_history-000001
{
  "aliases": {
    "octi_history": {
      "is_write_index": true
    }
  }
}

Repeat this step for all indices:

• octi_deleted_objects
• octi_files
• octi_history
• octi_inferred_entities
• octi_inferred_relationships
• octi_internal_objects
• octi_internal_relationships
• octi_stix_core_relationships
• octi_stix_cyber_observable_relationships
• octi_stix_cyber_observables
• octi_stix_domain_objects
• octi_stix_meta_objects
• octi_stix_meta_relationships

Re-index all indices

Using the reindex API, re-index all indices one by one:

curl -X POST "localhost:9200/_reindex?pretty" -H 'Content-Type: application/json' -d'
{
  "source": {
    "index": "opencti_history-000001"
  },
  "dest": {
    "index": "octi_history"
  }
}
'

You will see the rollover policy to be applied and the new indices are automatically rolled-over during re-indexation.

Delete all old indices

Then just delete all indices with the prefix opencti_.

Start your platform

Start your platform, using the new indices.

Rollover documentation

To have more details about automatic rollover and lifecycle policies, please read the official ElasticSearch documentation.
